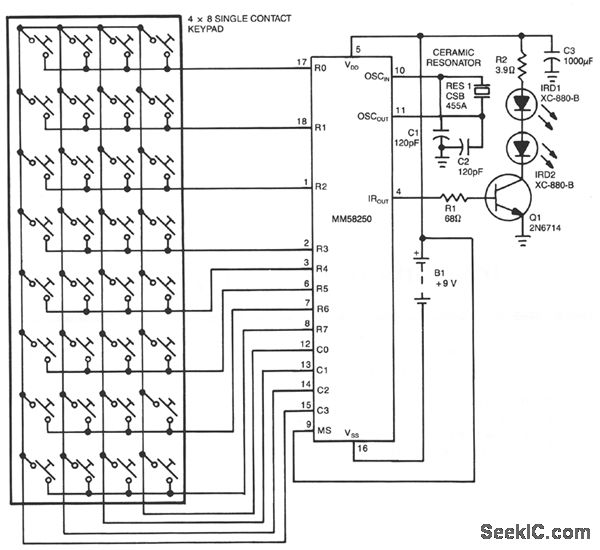

INFRARED_TRANSMITTER_1

Published:2009/7/7 8:31:00 Author:May | From:SeekIC

Reprinted Url Of This Article:
http://www.seekic.com/circuit_diagram/Measuring_and_Test_Circuit/INFRARED_TRANSMITTER_1.html

Print this Page | Comments | Reading(3)
