INFRARED_BODY_HEAT_DETECTOR

Published:2009/6/19 4:12:00 Author:May | From:SeekIC

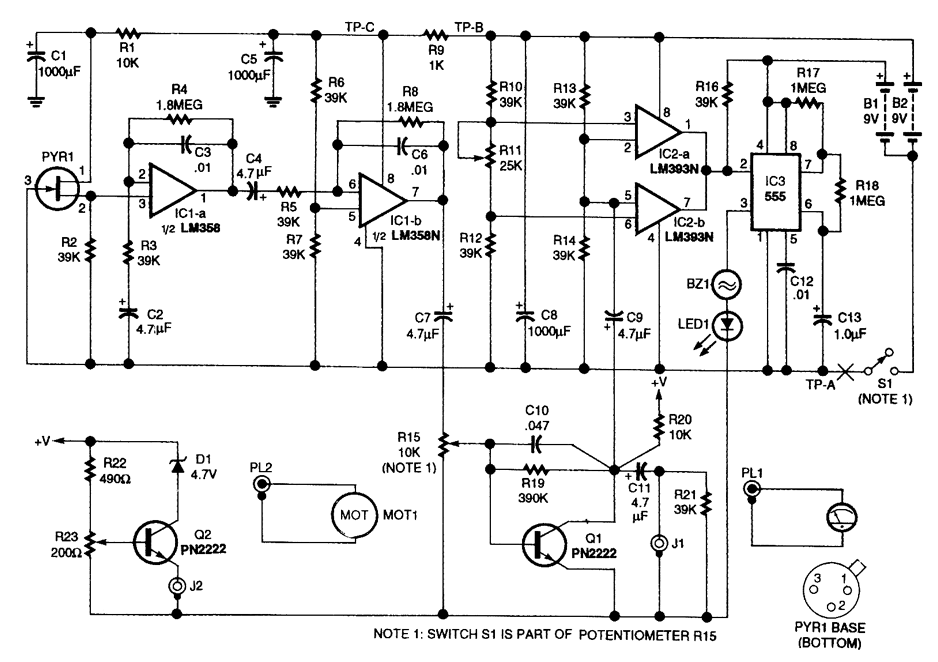

This circuit uses a pyroelectric detector to detect IR emissions in the 6- to 14-micron range. It is useful for security or infrared experiments. PYR1 is a pyroelectric IR detector. The unit should be mounted in a case with an IR lens to focus energy on the detector.
