INDUCTANCE_WITH_DVM_MEASURING_CIRCUIT

Published:2009/6/18 23:10:00 Author:May | From:SeekIC

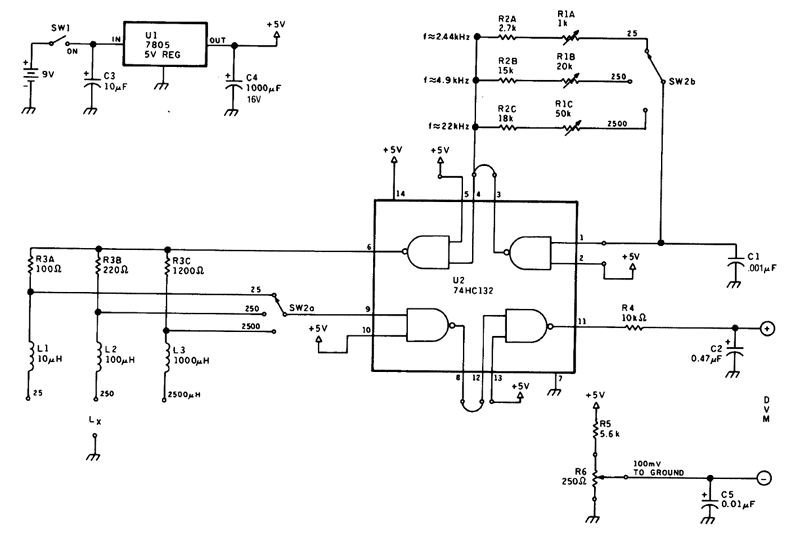

The inductance meter comprises an oscillator and pulse shaper. The square wave from the oscillator is differentiated and the differentiator output is shaped and read on a DVM. This will be proportional to inductance. R1A, B, C set calibration and R6 is an offset control.
