High-power transistors test circuit with multimeter

Published:2012/8/13 22:47:00 Author:Ecco | Keyword: High-power transistors, multimeter, test circuit | From:SeekIC



High-power transistors test circuit with multimeter
High-power transistors test circuit with multimeter
High-power transistors test circuit with multimeter
High-power transistors test circuit with multimeter
High-power transistors test circuit with multimeter

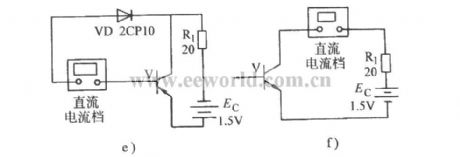

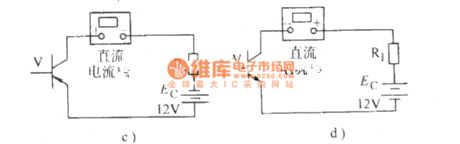

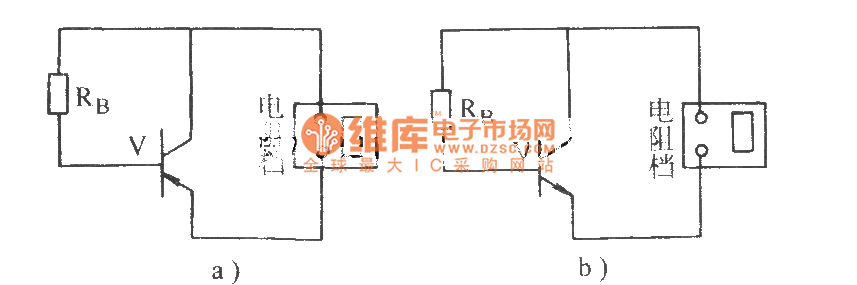

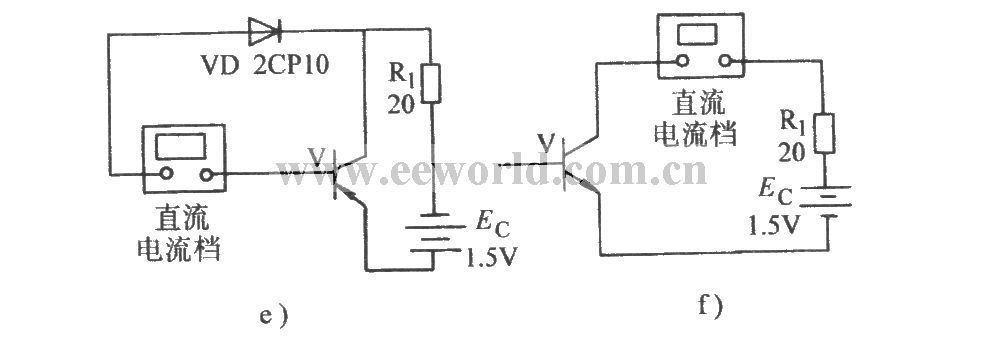

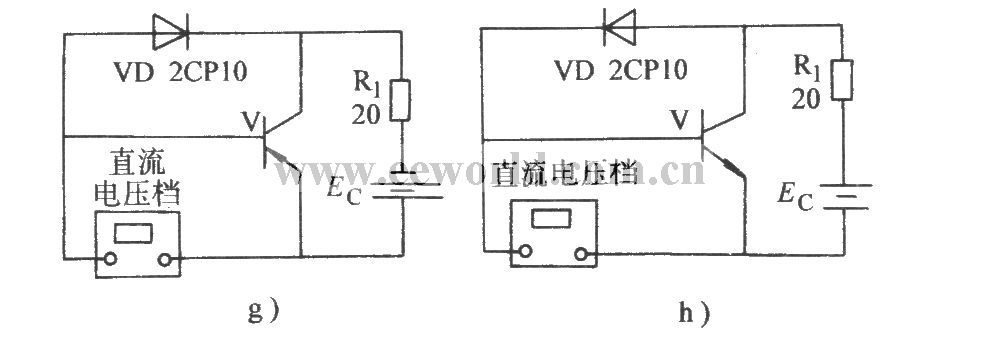

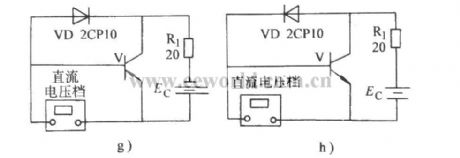

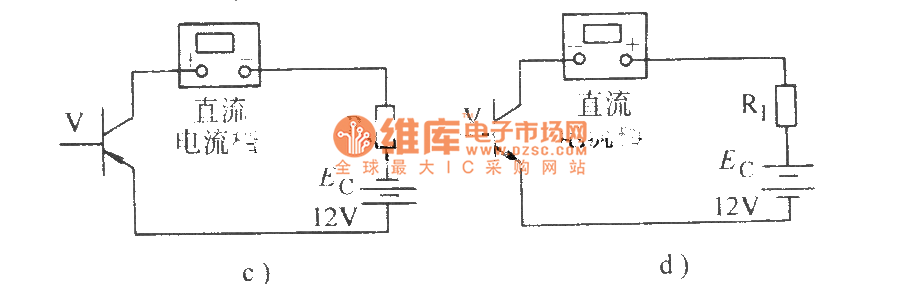

Figure a, bare used to testthe amplification of high-power transistor . Figure c, dare used to testthe Iceo of high-power transistors. Figure E, fare used tothe hFE of high-power tube. Figure g, hare used to test high-power transistor UB . Figure i, kare used totest high-power transistors UBES and UCES.
