GRID_DIP_METER

Published:2009/6/30 23:13:00 Author:May | From:SeekIC

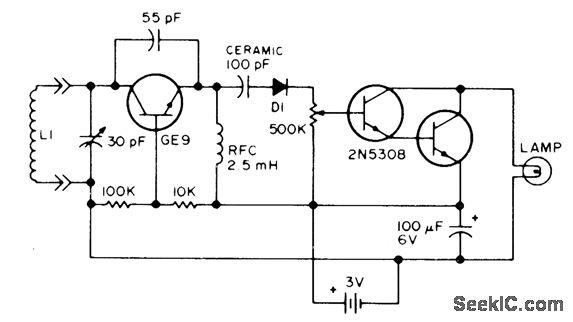

Uses ordinary No.48 or 49 pilot lamp as resonance indicator will oscillate ai frequencies up to 12 MHz.Wind L1 to cover desired frequency ranges.-Circuits,73 Magazine,April 1973,p 133.
