FURNACE_FUEL_MISER_5

Published:2009/6/19 3:51:00 Author:May | From:SeekIC

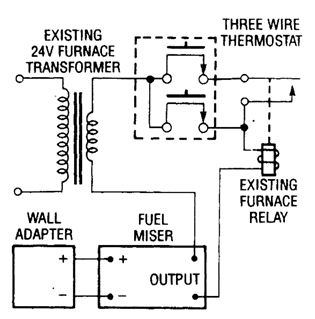

Some oil-fired systemt use threewire thermostats to control the operation of the burner motor and ignition system by activaring a relay. This is a typical installation for such systems.
