FURNACE_FUEL_MISER_3

Published:2009/6/19 3:47:00 Author:May | From:SeekIC

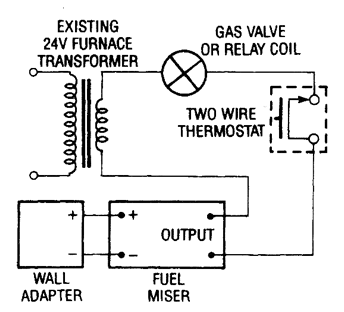

This drawing shows the Fuel Miser connecled in series wlith the thermostat of a two-wire gas furnace that's powered by c 24-volt transformer.
