FURNACE_FUEL_MISER_2

Published:2009/6/19 3:45:00 Author:May | From:SeekIC

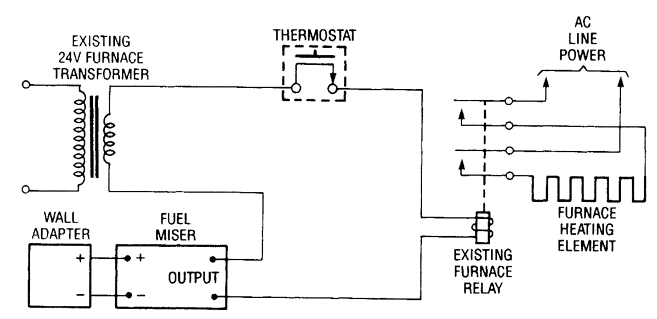

Electric-heating systems may or may not use a relay in the thermostat c ircuit. Those that do have a relay can be controlled by the Fuel Miser by wiring its output circuit in series with the relav coil connections as shown here.
