FM_STEREO_DECODER

Published:2009/6/18 2:46:00 Author:May | From:SeekIC

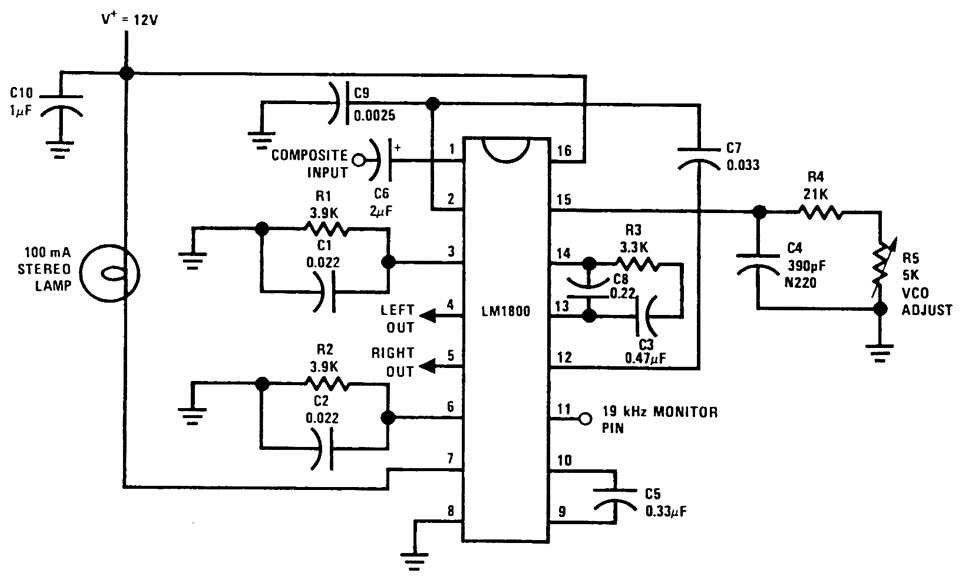

Using an LM1800, this circuit takes composite baseband MPX input and recovers L7R audio channels. The VCO is set for 19 kHz (or 15.7 kHz for TV applications) or as needed.
