FLASH_EXPOSURE_METER

Published:2009/6/28 21:02:00 Author:Jessie | From:SeekIC

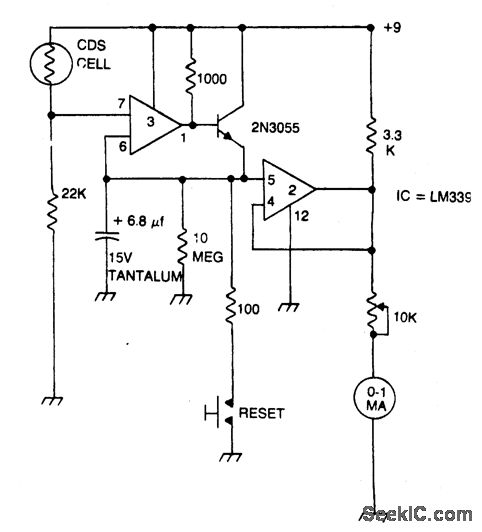

Strobe light meter catches the peak of flash intensity and holds it long enough to give a reading. The reset button must be pressed before each measurement.
