FIRST_RESPONSE_MONITOR_II

Published:2009/6/19 3:46:00 Author:May | From:SeekIC

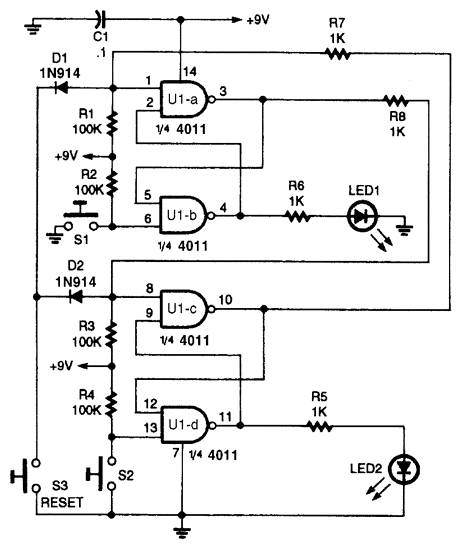

Two interlocking flip flops are used to detect the first of two inputs,but a logical-level signal can be substituted.
