FIELD_STRENGTH_METER_II

Published:2009/7/1 23:53:00 Author:May | From:SeekIC

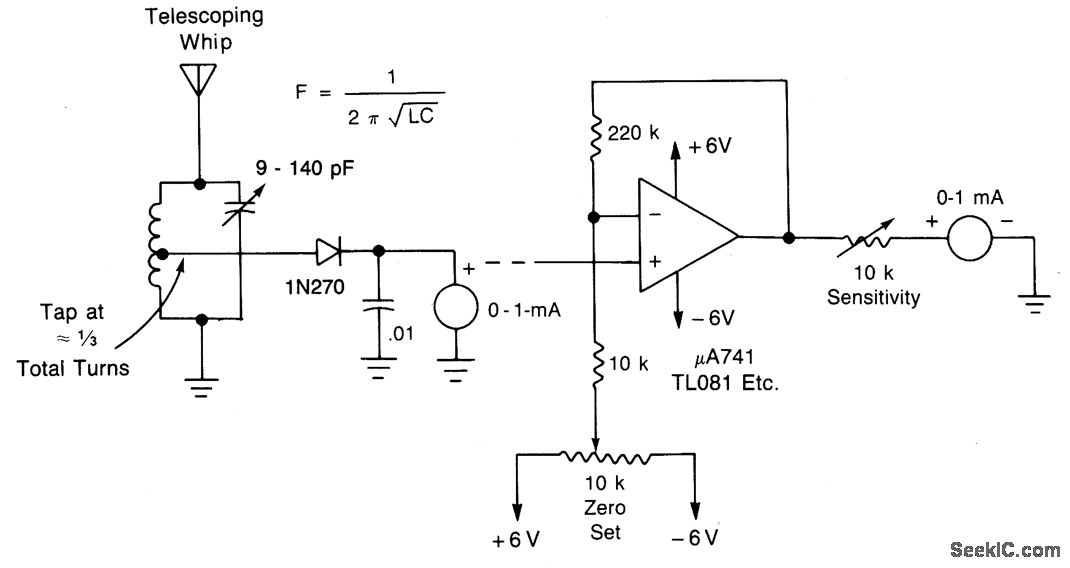

Minimum-parts field-strength meter is shown here. For more distant testing, add the dc amplifier.
