Electromagnetic Oscillation Demonstrator Circuit Diagram

Published:2011/6/9 4:26:00 Author:Vicky | Keyword: Electromagnetic Oscillation Demonstrator, | From:SeekIC

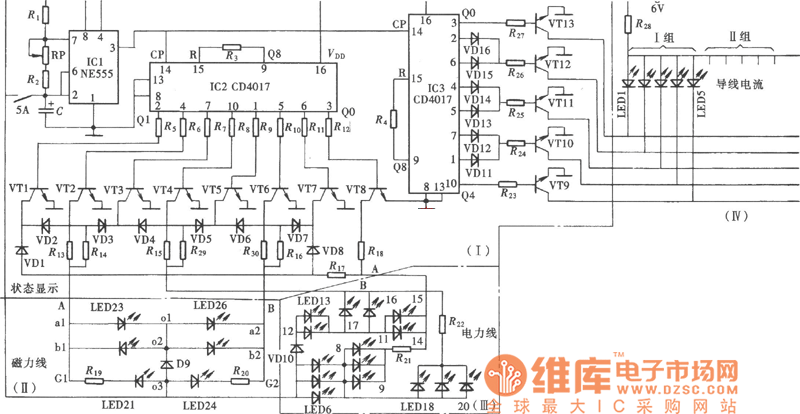

The picture is a circuit of electromagnetic oscillation demonstrator. It is displayed intuitively and visually in electromagnetic oscillation by the flow type pf luminous diode. The changing situation of galvanic current, magnetic field and electric field is also displayed in the procession of electromagnetic oscillation. Through coil current, it can display the change of circuit and magnetic field and the constitution of circuit, pulse drive circuit and work power supply.
