Electric and pressure measuring circuit diagram

Published:2011/8/1 21:01:00 Author:Ecco | Keyword: Electric measuring , pressure measuring | From:SeekIC

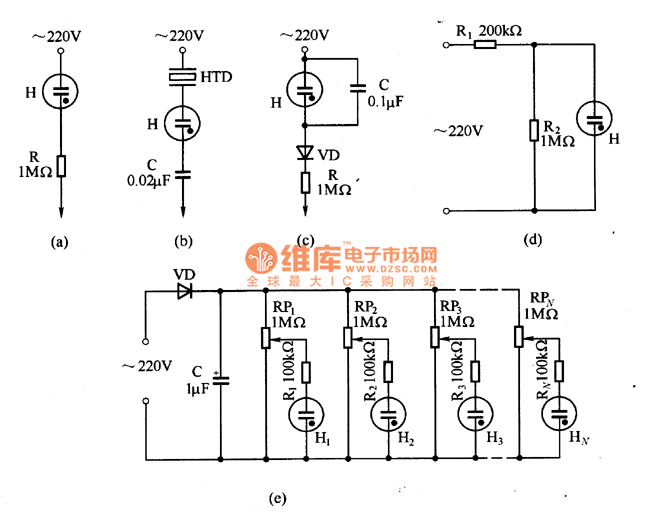

Figure (a) shows the general test pencil circuit; figure (b) shows the sound test circuit; Figure (c) shows the pressure measurement circuit with flashing light; figure (d) is the voltage indication circuit; figure (e) shows the peak voltage indicator circuit, and adjusting the resistance of the potentiometer RP can increase gradually neon starter.
