ELECTRET_MIKE_CIRCUIT

Published:2009/7/16 21:41:00 Author:Jessie | From:SeekIC

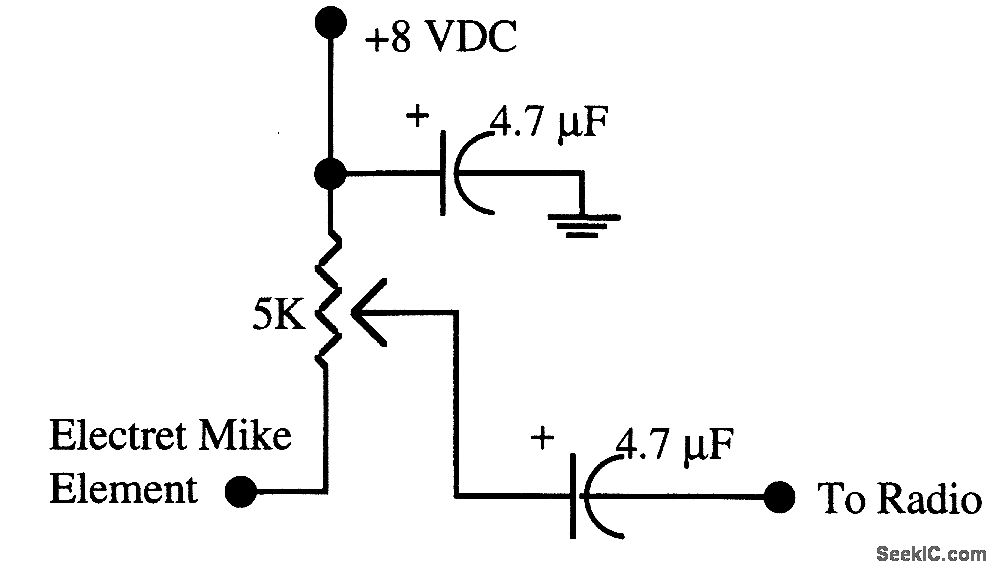

This circuit shows how to power an electret microphone. The 5-kΩ potentiometer acts as a gain control.
