DUMMY_LOAD_AND_VIDEO_DETECTOR_FOR_TRANSMITTER_TESTS

Published:2009/6/18 4:29:00 Author:May | From:SeekIC

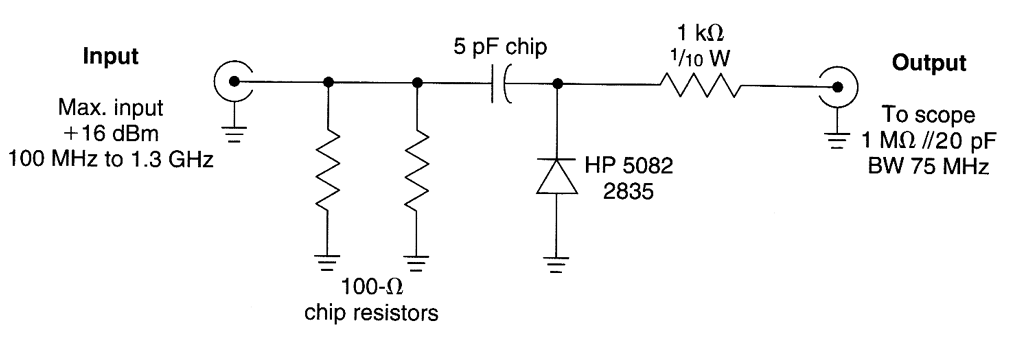

This circuit is useful as a video modulation monitor for testing low-power video transmitters. For higher power inputs, use a suitable attenuator between the detector and the source. The detector should be connected to scope with as short a cable as possible to preserve video bandwidth.
