DOSAGE_RATE_METER

Published:2009/6/25 5:07:00 Author:May | From:SeekIC

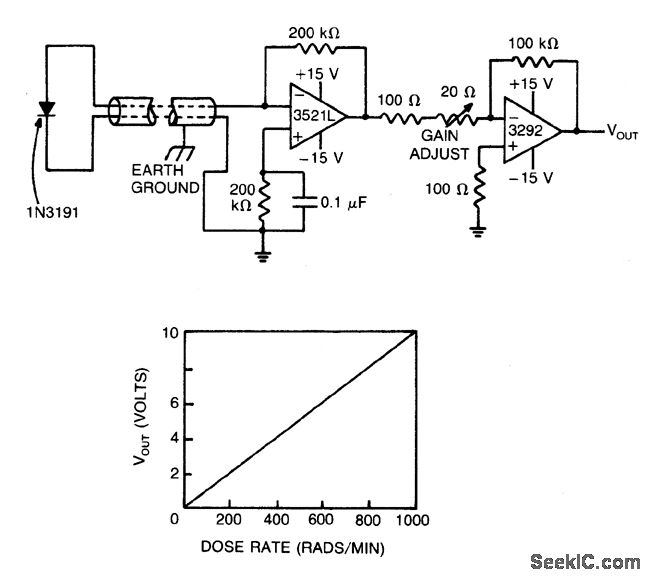

A commercial diode is the detector in this highly accurate radiation monitor. The lowdrift FET-input op amp amplifies detector current to a usable level, and the chopper-stabilized amplifier then provides additional gain while minimizing any error caused by ambient-temperature fluctuations. Gain is adjusted so that the output voltage is 1% of incident radia-tion intensity in rads per minute; therefore voltage can be displayed on 3 1/2 digit DVM for direct reading of dosage rate. Output voltage from the monitor is linearly proportional to radiation intensity at the diode.
