DIODE_TESTING

Published:2009/7/1 2:14:00 Author:May | From:SeekIC

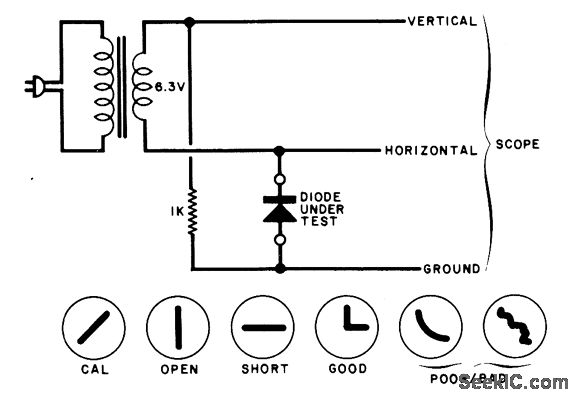

The circuit will display curves on a scope, contingent on the state of the diode. To calibrate, substitute a 1000-ohm resistor for the diode and adjust the scope gains for a 45-degree line. The drawings show some expected results.
