Capacitor discriminating device (CD4069)

Published:2012/12/24 2:04:00 Author:Ecco | Keyword: Capacitor, discriminating device | From:SeekIC

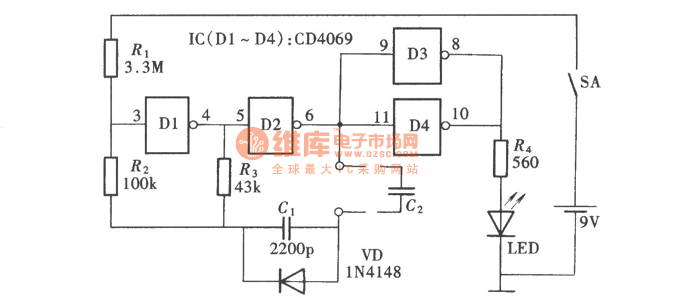

Capacitor instrument is not to be used to measure the capacity of the capacitor but for identifing good or bad and short circuit or open circuit, then it provides a reliable quality assurance for the production of circuit to reduce the circuit making unnecessary trouble. The circuit is shown as figure. The instrument can identify 1pF ~ 1μF capacitors.
