CAPACITANCE_METER

Published:2009/7/17 2:55:00 Author:Jessie | From:SeekIC

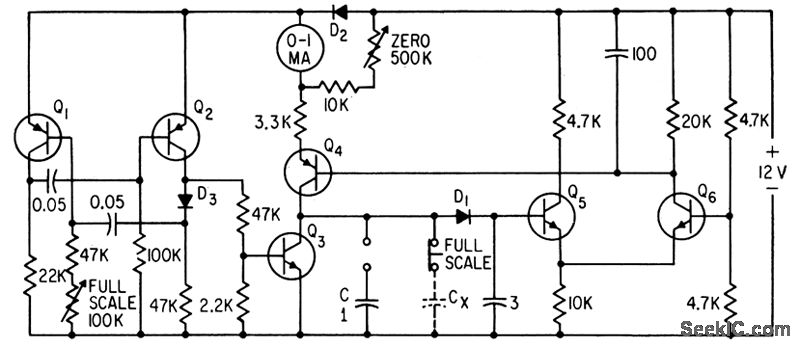

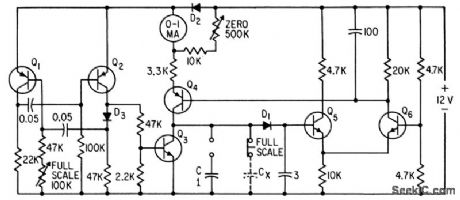

Milliammeter indicates capacitance values over any desired range on linear scale having zero at right.-W. Mosinski, Capacitance Meter has Linear Scale, Electronics, 35:12, p 64.
