Capacitance Identification Device Circuit Diagram

Published:2011/6/9 4:22:00 Author:Vicky | Keyword: Capacitance Identification Device, | From:SeekIC

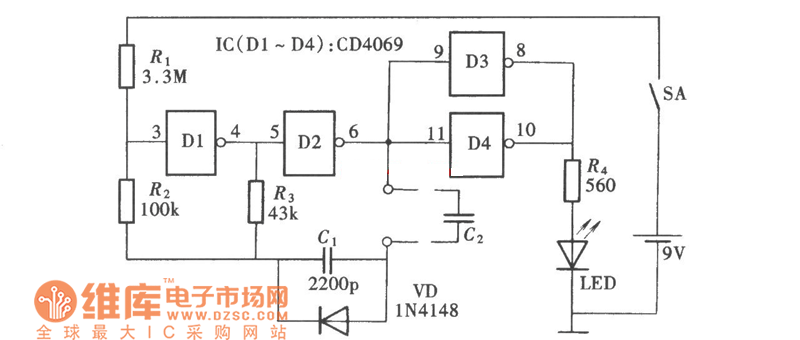

Capacitance identification device is not used to measure the capacity of the capacitor, but to identify whether the capacitor is good or bad, and whether it can be used, that is, whether there is short circuit or circuit break in the capacitor. It provides quality guarantee for making the circuit and reduce the unnecessary troubles. The circuit composition as is shown in the picture. This device can identify capacitors whose capacity are from 1pF to 1μF 1.
