CRYSTAL_TESTER

Published:2009/6/15 21:19:00 Author:May | From:SeekIC

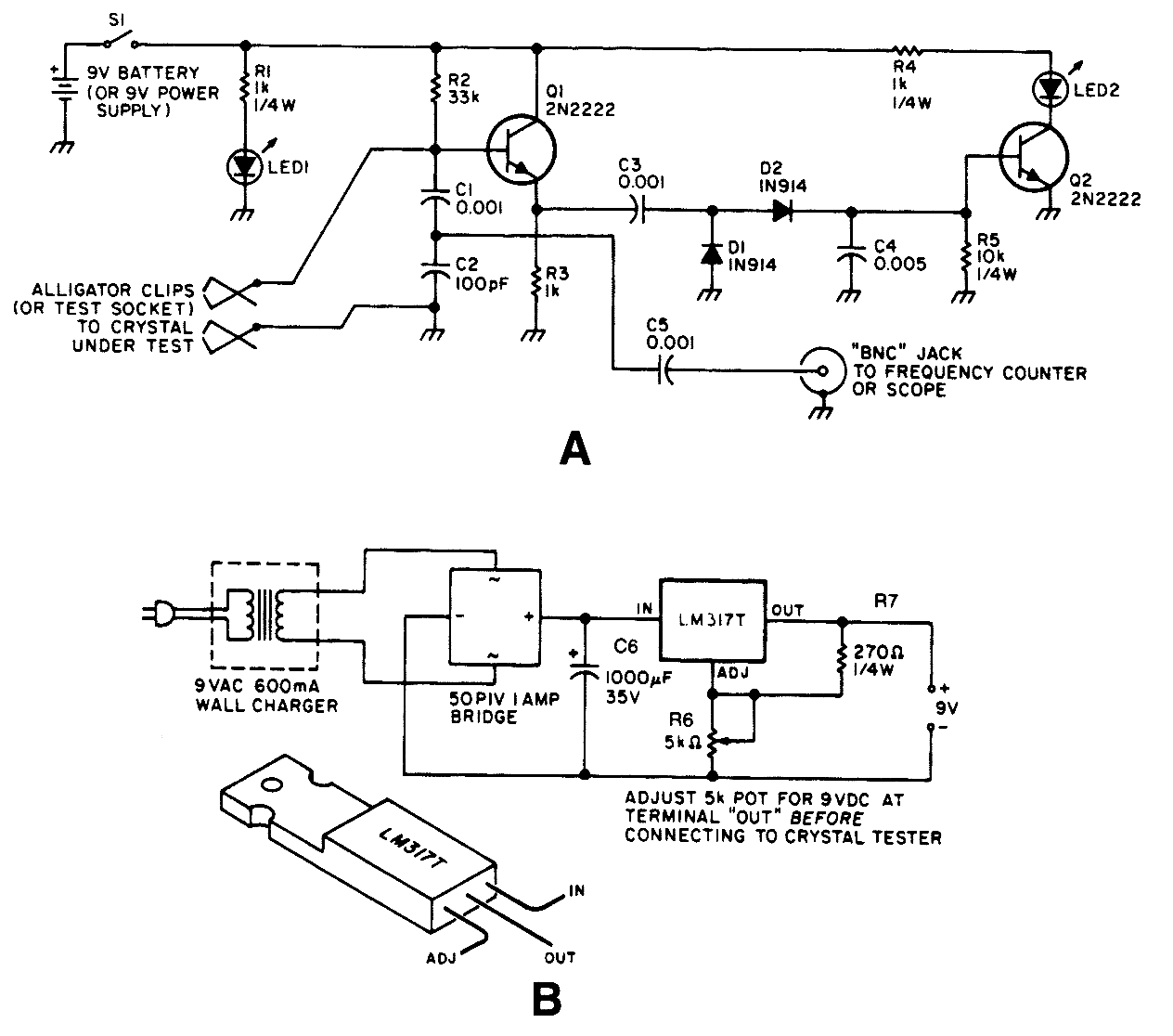

Q1 acts as a Colpitts crystal oscillator, and if the crystal under test is operational, the RF signal is rectified by D1 and D2, turning on Q2 and lighting indicator LED2. LED1 is a power indicator.
