COINCIDENCE_DETECTOR

Published:2009/7/16 23:24:00 Author:Jessie | From:SeekIC

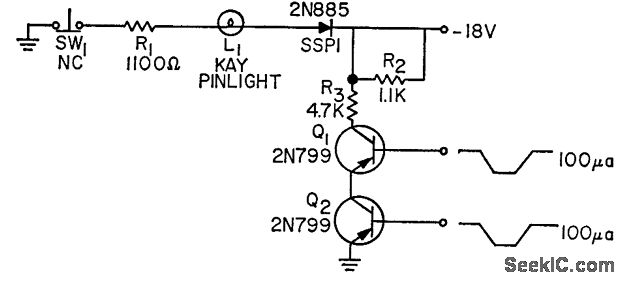

Tums on lamp to indicate coincidence of any two input pulses that are 100 microamp in amplitude and coincide for at least 1 microsec.-J. Crawling, Pulse Coincidence Defector, EEE, 11:7, p 27.
