CD4050_TIMER

Published:2009/7/14 5:12:00 Author:May | From:SeekIC

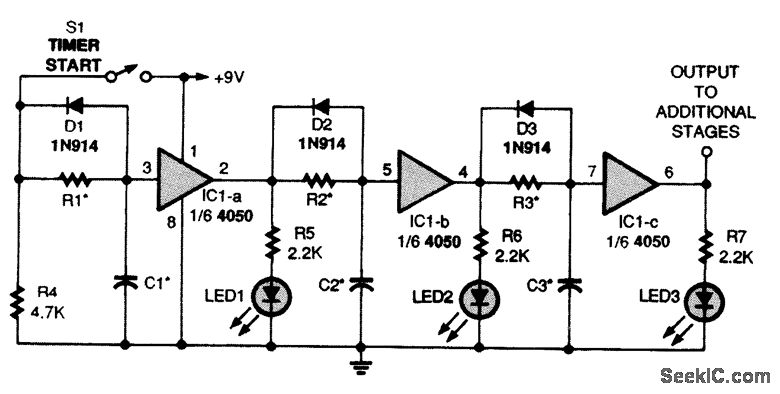

Three stages are used to produce three consecutive time delays. The time delay for each stage is very close to 1.1 RnCn. Diode Dn, allows quicker reset of stage n.
