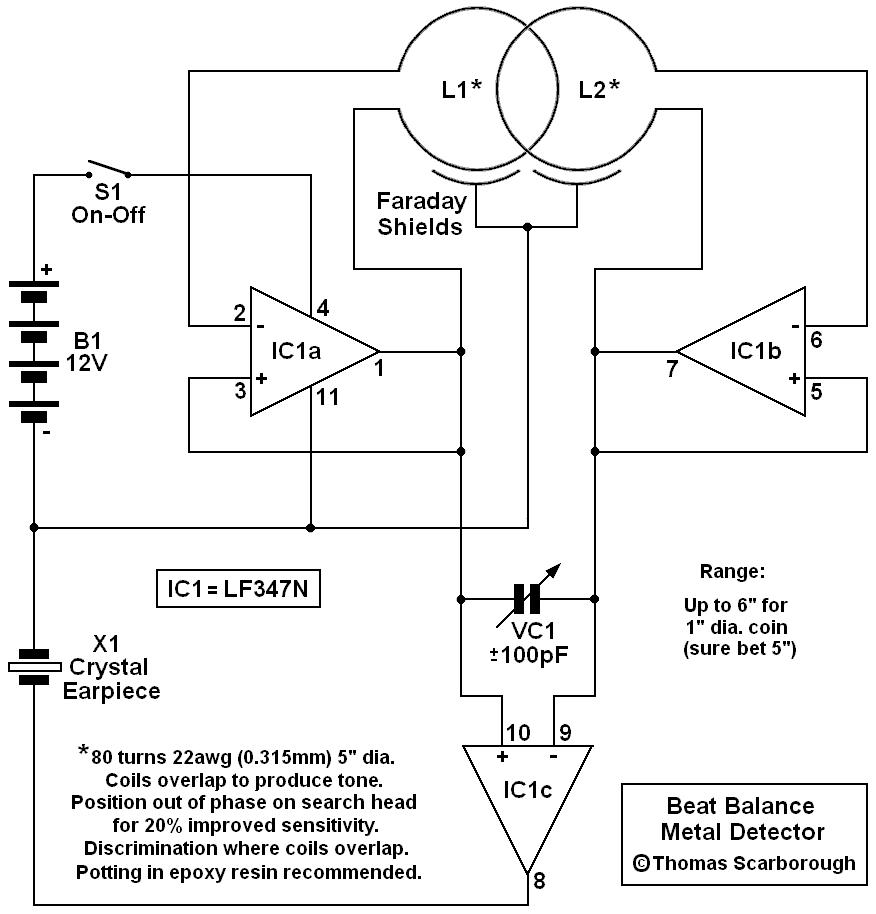

Beat Balance Metal Detector circuit

Published:2012/12/3 20:44:00 Author:muriel | Keyword: Beat Balance, Metal Detector circuit | From:SeekIC

Reprinted Url Of This Article:
http://www.seekic.com/circuit_diagram/Measuring_and_Test_Circuit/Beat_Balance_Metal_Detector_circuit.html

Print this Page | Comments | Reading(3)
