Bearing fault detector circuit diagram 1

Published:2011/8/10 22:05:00 Author:Ecco | Keyword: Bearing fault detector | From:SeekIC

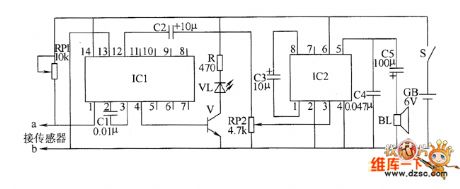

The bearing fault detector circuit is composed of the bearing detection sensor, signal processing circuit, transistor V, audio amplifier integrated circuit IC2, speaker BL and the RC element, and IC1, light-emitting diode VL, transistor are shown as the chart. RP1 is used to adjust the sensitivity of the signal processing circuit. RP2 is used to adjust the speaker output volume. R select the 1/2W carbon film resistor. RP1 uses the small synthetic membrane potentiometer without switch; RP2 uses the small synthetic membrane potentiometer with switch. C1 and C4 select the polyester capacitors; C2, C3 and C5 select the electrolytic capacitors with voltage in 16V.
