BUCK_BOOST_CONVERTER

Published:2009/7/7 4:32:00 Author:May | From:SeekIC

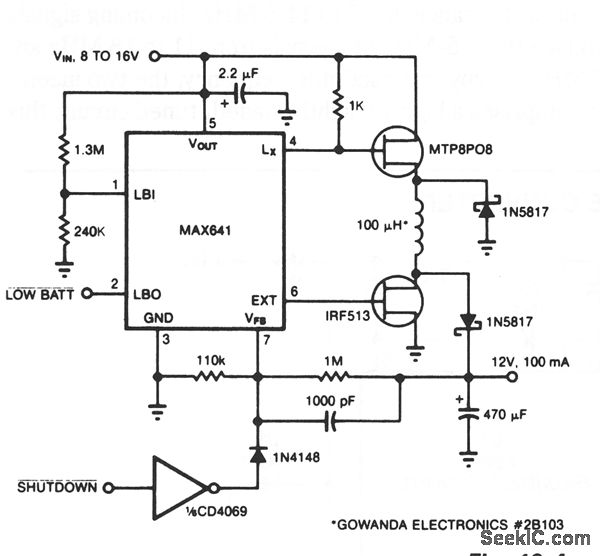

This converter can accommodate wide input-voltage swtngs，such as the 8 to 15－V swing typicalof a 12-V sealed lead/acid battery．The low batteryoutput indicates when mput voltage drops below 8V. Pulling shutdown turns off the circuit.
