BATTERY_ORANKING_TESTER

Published:2009/7/13 4:43:00 Author:May | From:SeekIC

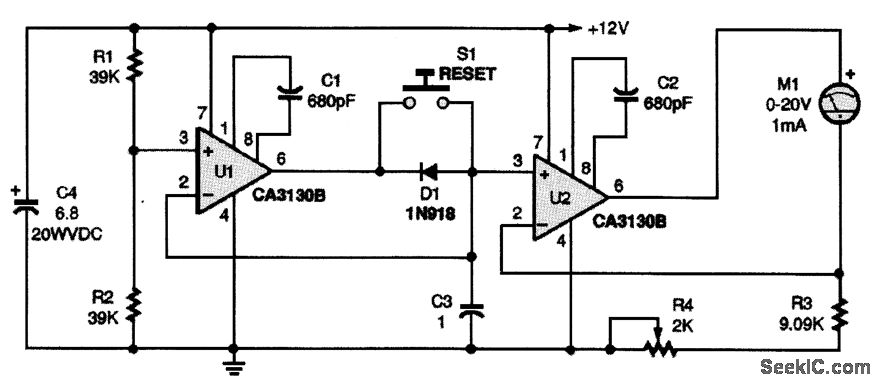

Need to discover if your battery is weak or if your starter's windings are shorted? This meter will display how low your battery voltage drops during a start. The circuit is a negative-peak reading voltmeter.
