BATTERY_MONITOR

Published:2009/6/28 22:27:00 Author:May | From:SeekIC

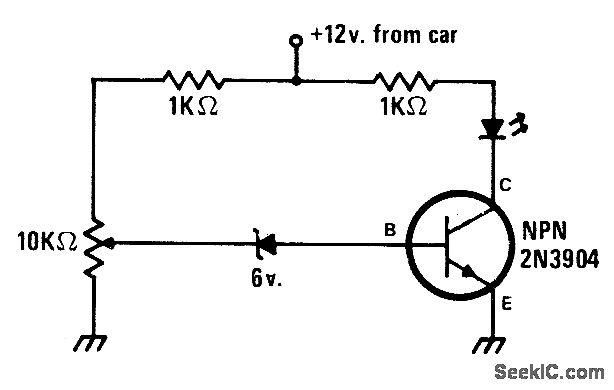

Basic circuit energizes LED when battery voltage drops to level set by 10K pot. Any number of additional circuits can be added, for reading battery voltage in 1-V steps oreven steps assmall as 0.1 V. Circuitsup-plements idiot light that replaces ammeter in most modern cars. LED type is not criticaL-J. Sandier, 9 Pro jects under $9, Modem Electron-ics, Sept, 1978, p 35-39.
