Audio Level Meter circuits

Published:2012/11/19 21:48:00 Author:muriel | Keyword: Audio Level , Meter circuits | From:SeekIC

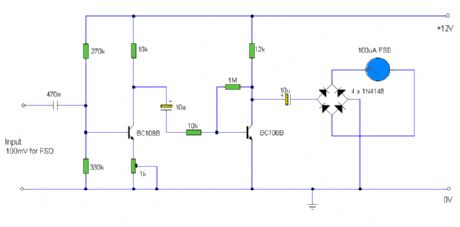

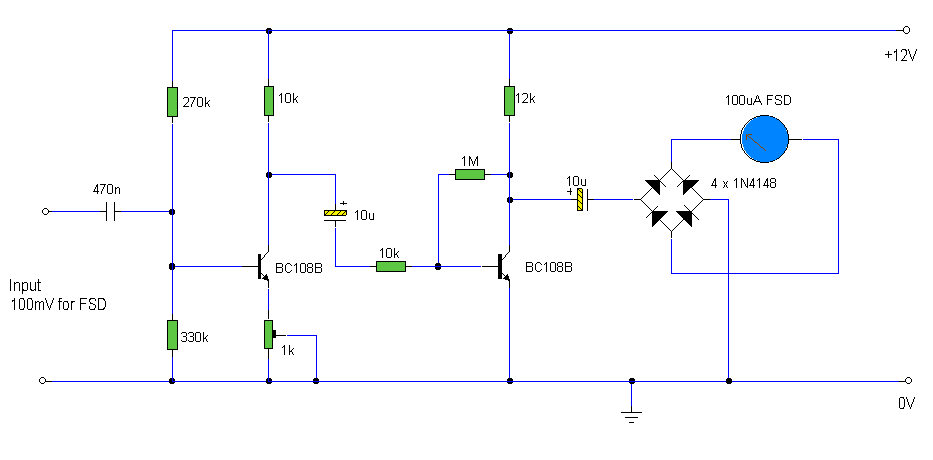

Audio levels can be monitored using a small panel meter with this circuit built from discrete components.
