AXIS_CROSSING_DETECTOR

Published:2009/7/16 20:31:00 Author:Jessie | From:SeekIC

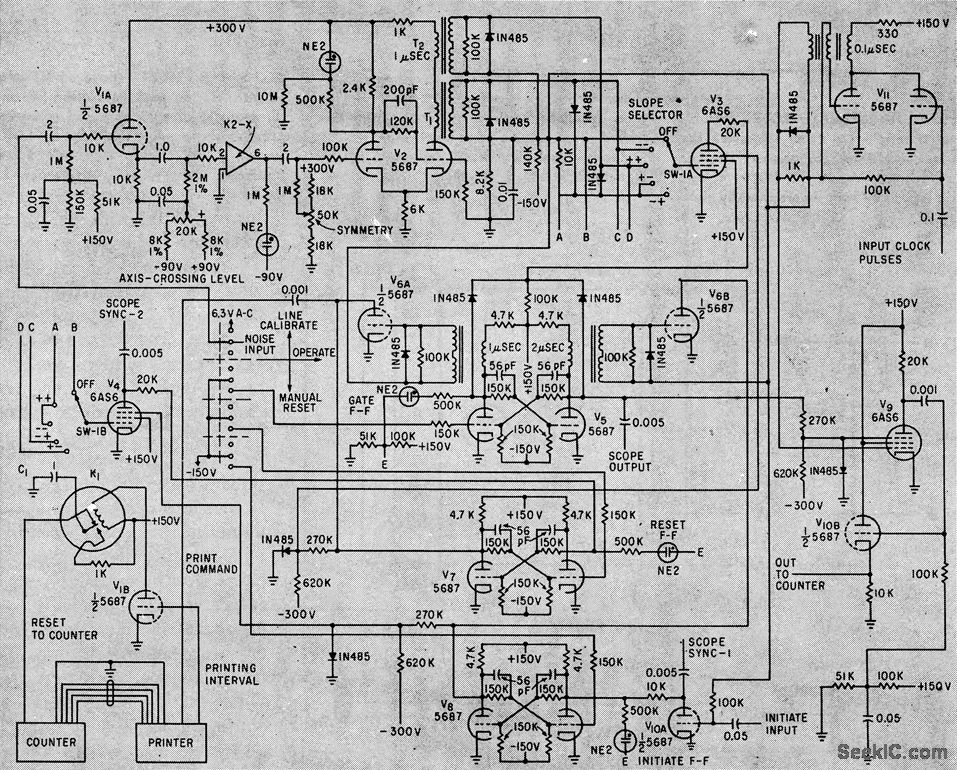

Used in weak-signal detectors and in theoretical studies of noise.Samples time intervals between positive-going and negative going zero crossings, to establish un interval gate whose width equals time interval of desired weak signal. Output goes to cro for viewing of interval gate.-A. J. Rainal, Digital Measurement Axis-Crossing Intervals,Electronics, 33:23, p 88-91.
