AUTO_LIGHTS_ON_REMINDER

Published:2009/6/24 21:58:00 Author:May | From:SeekIC

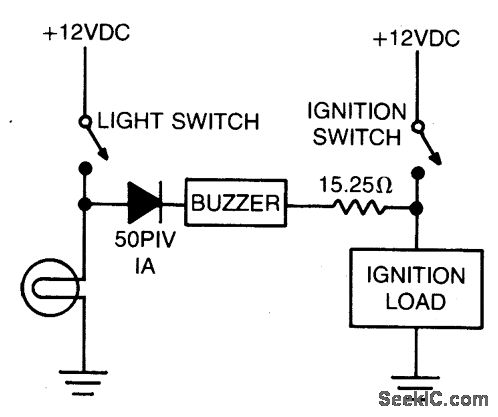

The alarm is composed of a diode, buzzer, and limiting resistor. The diode serves as a switch which allows the buzzer to sound off only when the light switch is closed and the ignition is turned off.
