AUDIO_CONTINUITY_TESTER

Published:2009/6/26 4:05:00 Author:Jessie | From:SeekIC

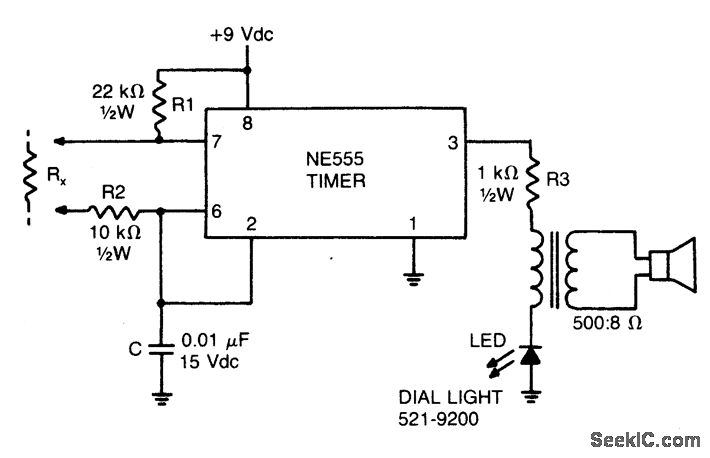

This low-current audio continuity tester indicates the unknown resistance value by the frequency of audio tone. A high tone indicates a low resistance, and a tone of a few pulses per second indicates a resistance as high as 30 megohms.
