AUDIBLE_METRONOME

Published:2009/6/22 22:54:00 Author:May | From:SeekIC

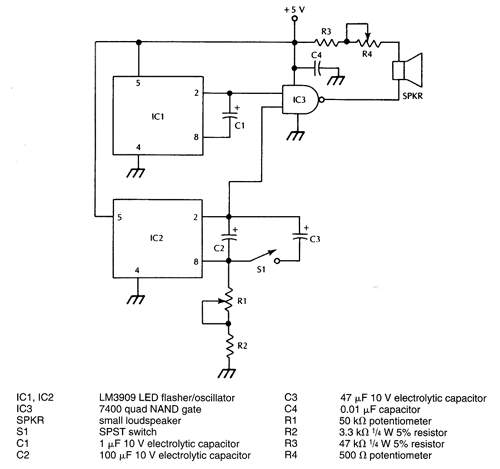

IC1 generates an audible frequency while a variable very low frequency is generated by IC2. R1 sets the metronome rate. The two signals are combined in IC3.
