ANALOG_CIRCUITRY_CALIBRATOR

Published:2009/6/22 17:47:00 Author:May | From:SeekIC

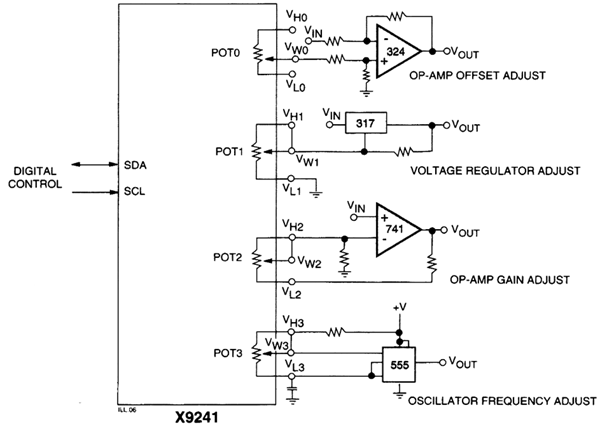

An XICOR X9241 Quad POT IC can be used to digitally adjust four analog circuits, as shown in the example schematic.
