AM_ENVELOPE_DETECTOR

Published:2009/7/10 3:47:00 Author:May | From:SeekIC

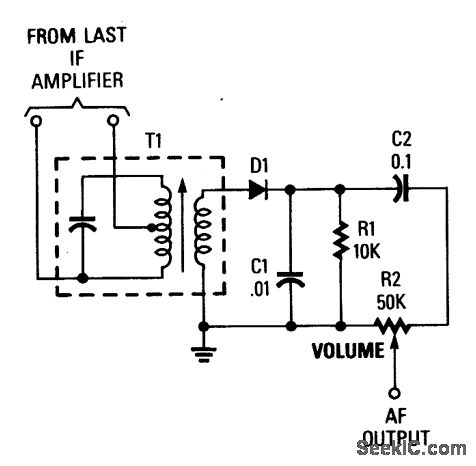

This general-purpose detector for AM enve-lope detection can be used in many receiver appli-cations. T1 matches the IF amplifier impedance (typically 1 to10 kΩ) to the 1 kΩ (approximately) detector impedance. Dl can be an IN60, IN82AG, IN270, or a similar type.
