ALARM_DETECTOR

Published:2009/6/30 1:38:00 Author:May | From:SeekIC

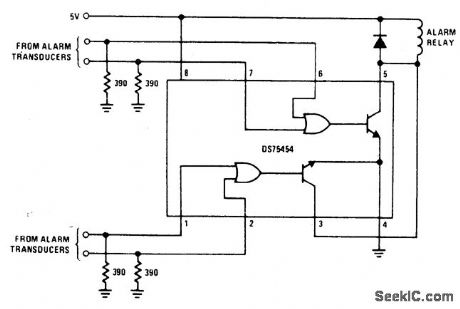

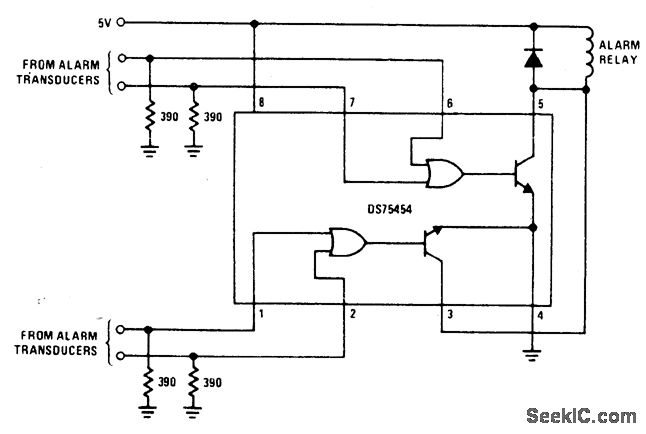

National DS75454 dual peripheral NOR driver operating from single 5-V supply energizes alarm relay when one of alarm transducers for either section delivers logic signal as result of intruder action.- Interface Databook, National Semiconductor, Santa Clara, CA, 1978, p 3-20－3-30.
