AF_VOLTMETER

Published:2009/6/30 22:09:00 Author:May | From:SeekIC

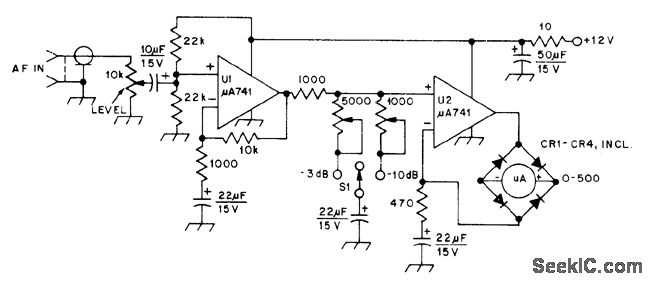

Although not calibrated on absolute basis, either 3 dB or 10 dB of attenuation can be switched in with S1 for measuring purposes. Internal ad justments are made easily by tacking 51-ohm resistor temporarily across input, then driving input with step attenuator fed with audio power at -10 dB by generator having 50-ohm pad in its output. CR1-CR4 are 1N914.-W Hayward, Defining and Measuring Receiver Dynamic Range, 057, July 1975, p 15- 21 and 43.
