AC_MILLIVOLTMETER

Published:2009/7/15 3:22:00 Author:Jessie | From:SeekIC

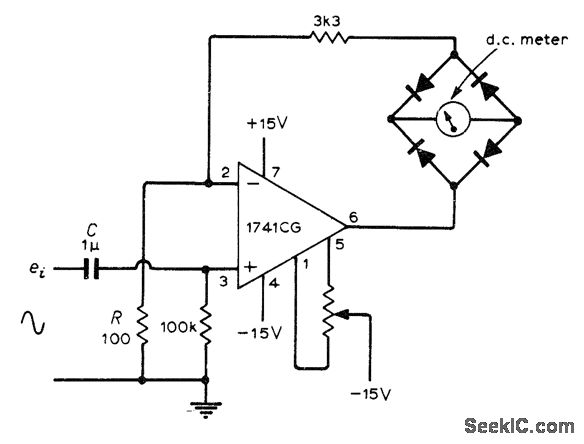

Combination of diode bridge and opamp forms basis for precise rneasurement of AC input voltages so small that they would be in nonlinear range of diodes alone Article discusses linearity problems and give output waveforms.-G, B. Clayton, Experiments with Operational Amplifiers, Wireless World, June 1973, p 275-276.
