ACID_RAIN_MONITOR

Published:2009/6/23 3:37:00 Author:Jessie | From:SeekIC

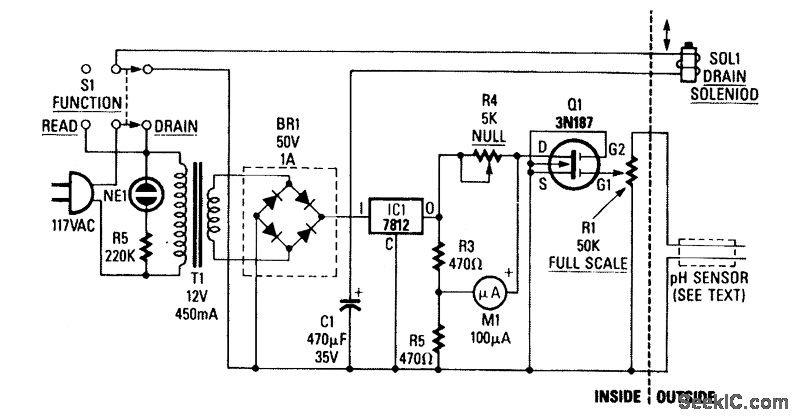

The drain-to-source resistance of Q1 varies depending on the acidity of the sample presented to Q1's gate circuit. That variable resistance varies the current flowing through the bridge; that current is proportional to pH.
