Published:2009/6/17 22:16:00 Author:May | From:SeekIC

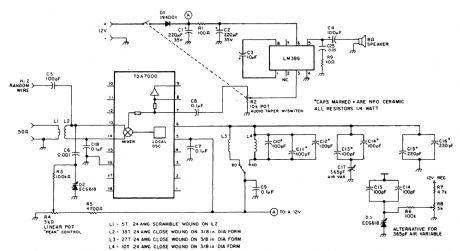

This direct-conversion receiver uses a TDA7000 IC and it drives an LM386 audio amplifier.The TDA7000 IS used forits mlxerand L.O.section. The frequency control can be either with an air variable capacitor or a varactor diode.
