80_W_ON_2_METERS

Published:2009/7/8 4:20:00 Author:May | From:SeekIC

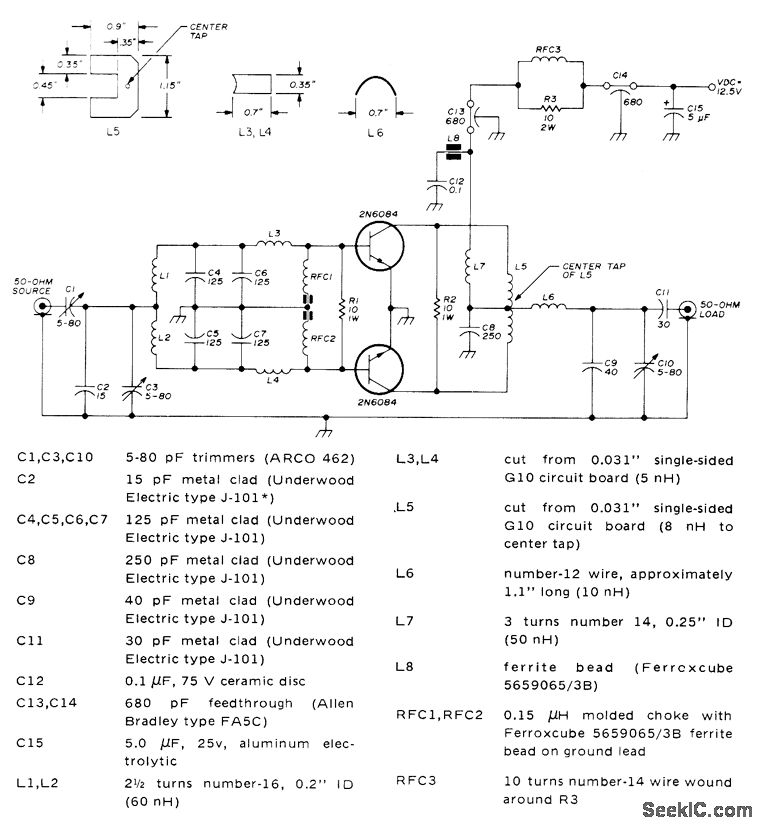

Single-stage design using two 2N6084 transistors combined with simple LC components can be tuned from 144 to 175 MHz. Typical input is 20W for 80-W output at 144 MHz. Article shows how to add 2N6083 driver stage that reduces input drive require-ment to 2,5 W. Power gain at 144 MHz is 6 dB. Article covers construction and adjustment.—J. Hatchett, A Solid 80 Watts fol Two Meters, Ham Radio, Dec. 1973, p 6-12.
