5_W_ON_80_OR_40_m

Published:2009/7/14 2:17:00 Author:May | From:SeekIC

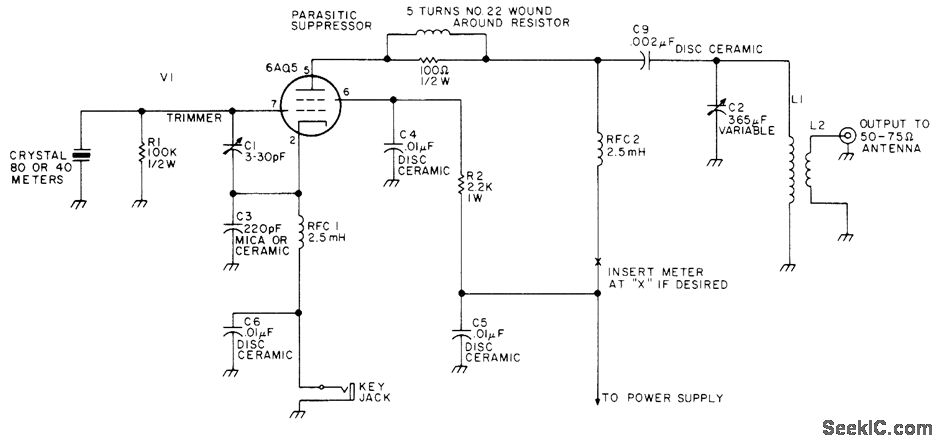

Single 6AQ5 operating from 200-V supply can cover all states and some DX with CE on 40 meters as low-power amateur radio station Antenna can be simple dipole 8 feet high L1 is 15 turns No 22 enamel on 11/4-inch plastic form, with 3 turns of insulated wire wound around cold end of L1 for L2 Article covers construction and operation and gives suitable 200-V voltage－doubling power supply circuit．-S．Dunn, ORP Fun on 40 and 80, 73 Magazine．Oct 1976, p 44－46.
