4_RANGE_ac_MILLIVOLTMETER

Published:2009/7/10 3:47:00 Author:May | From:SeekIC

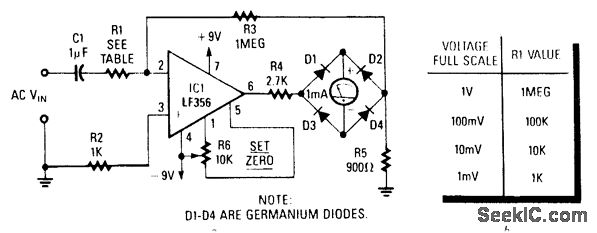

By placing the rectifter in the op amp feedback path, nonlinearity is greatly reduced to insigniftcant levels.The meter will read the full-wave rectifted average (absolute value) of the input signal.Frequency response is a few Hz to about 50 kHz.
