4013_DIVIDE_BY_2_CIRCUT

Published:2009/7/17 2:11:00 Author:Jessie | From:SeekIC

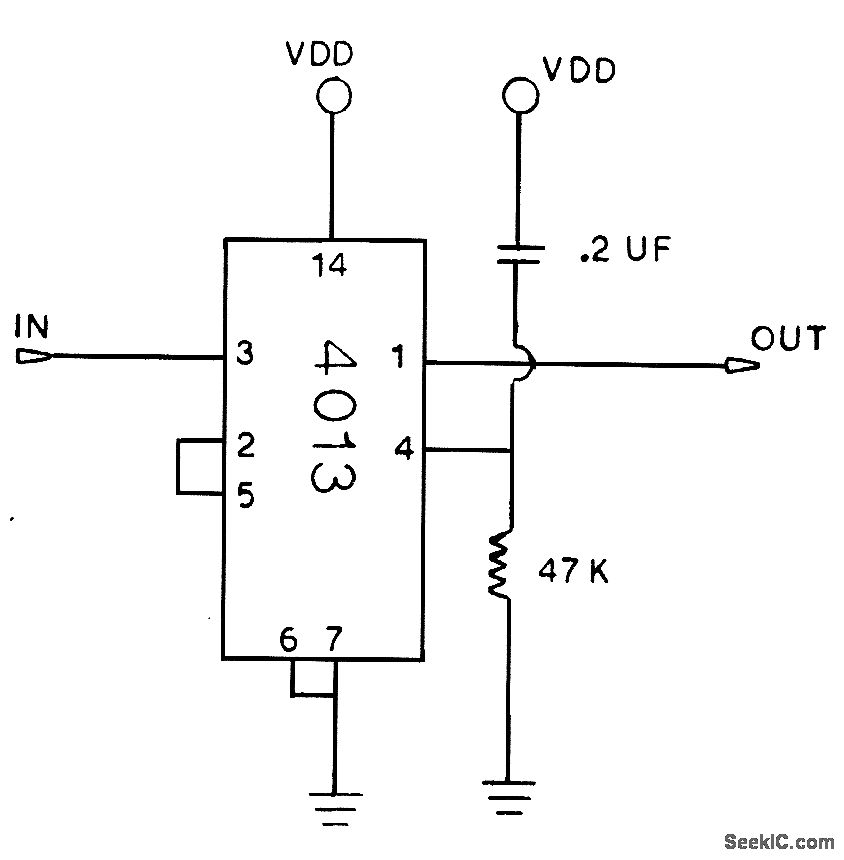

The first pulse into the input drives the output high. The second pulse drives the output low. VCC can be 5 to 15 V.
