1_kW_ON_2_METERS

Published:2009/7/14 3:49:00 Author:May | From:SeekIC

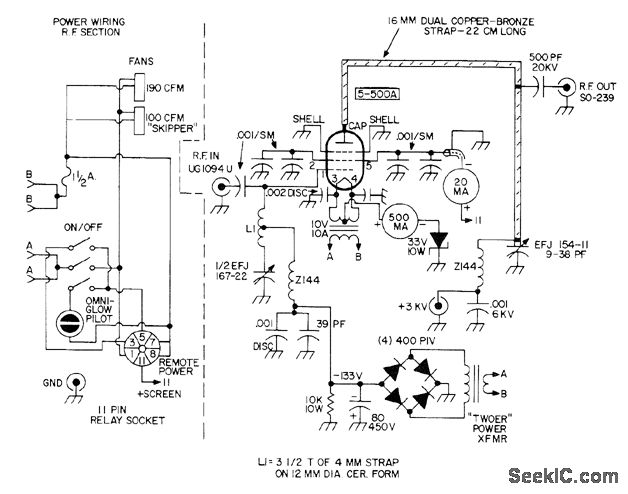

Developed for moonbounce communication. Article covers construction, with emphasis on insulation and cooling, and gives circuit of 3-kV power supply required.-R. W. Campbell, Kilowatt Linear Amplifier for 2 Meters, 73 Magazine, Dec. 1973, p 29-35.
