1_MC_COUNTER

Published:2009/7/14 2:04:00 Author:May | From:SeekIC

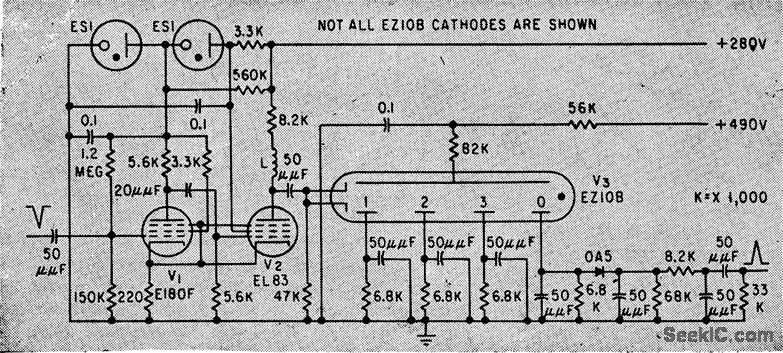

Increasing counting speed to this value requires special hydrogen gas in counter tubes and reduction of tube capacitances. Monostable mvbr V1-V2 is triggered by 5-V negatiye pulses. Cathode resistors of V3 ore bridged by capacitors to reduce effects of capacitive coupling between main and auxiliary cathodes.-K. Apel and P. Berweger, Miniature Gas-Filled Tubes For High-Speed Counting, Electronics, 33:8, p 46-47.
