1_MC_COMPLEMENTA_RY_TRANSISTOR_COUNTER

Published:2009/7/13 23:38:00 Author:May | From:SeekIC

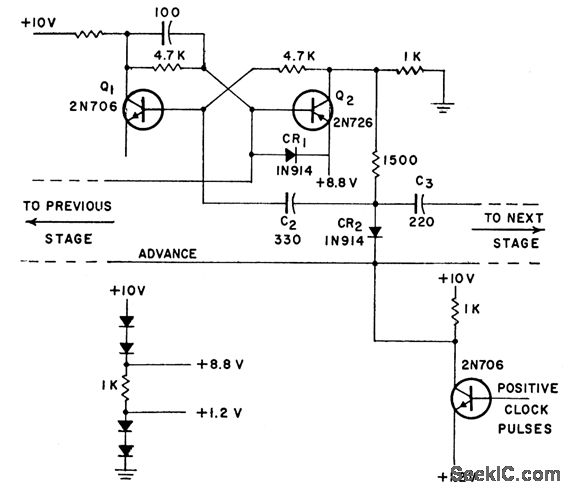

Only one stage draws current from power supply, because on stage has both transistors conducting and off stages have both transistors cut off'. Average power drawn is that of single conducting stage and is independent of number of stages. Circuit prefers off state at startup.-Counter Uses Complementary Transistors, Electronic Circuit Design Handbook, Mactier Pub. Corp., N.Y. 1965, p 129.
