15_kHz_TONE_DETECTORLED

Published:2009/6/18 3:55:00 Author:May | From:SeekIC

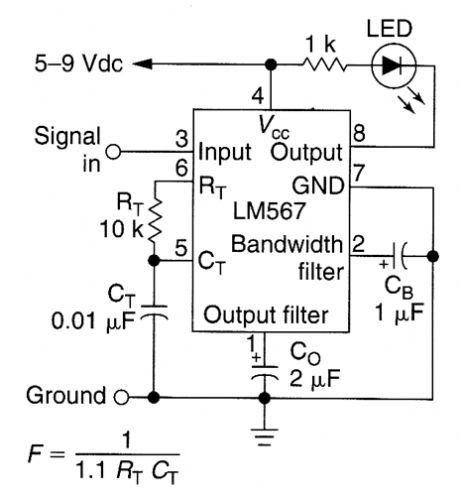

This circuit detects the presence of a 15-kHz audio signal and light the LED when it does so.
