12_GHz_DECADE_COUNTER

Published:2009/7/13 4:08:00 Author:May | From:SeekIC

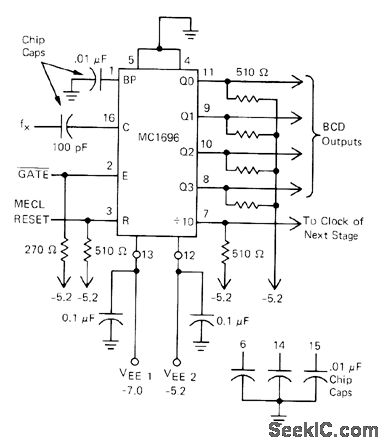

Motorola MC1696 BCD-output counter provides direct counting of events at up to 1.2 GHz without prescaling. Connection shown is for AC coupling of input signals. Decoupling capacitors are used on power supplies and all unused pins.MC1696 provides division by 10, with output driving cascaded MC10138 biquinary counters and associated latches connected to drive five-decade display as covered in report.-J, Roy, Event Counter and Storage Latches for High-Frequency, High-Resolution Counters, Moto-rola. Phoenix, AZ, 1975, EB-47.
